Read Servo Motor Angle

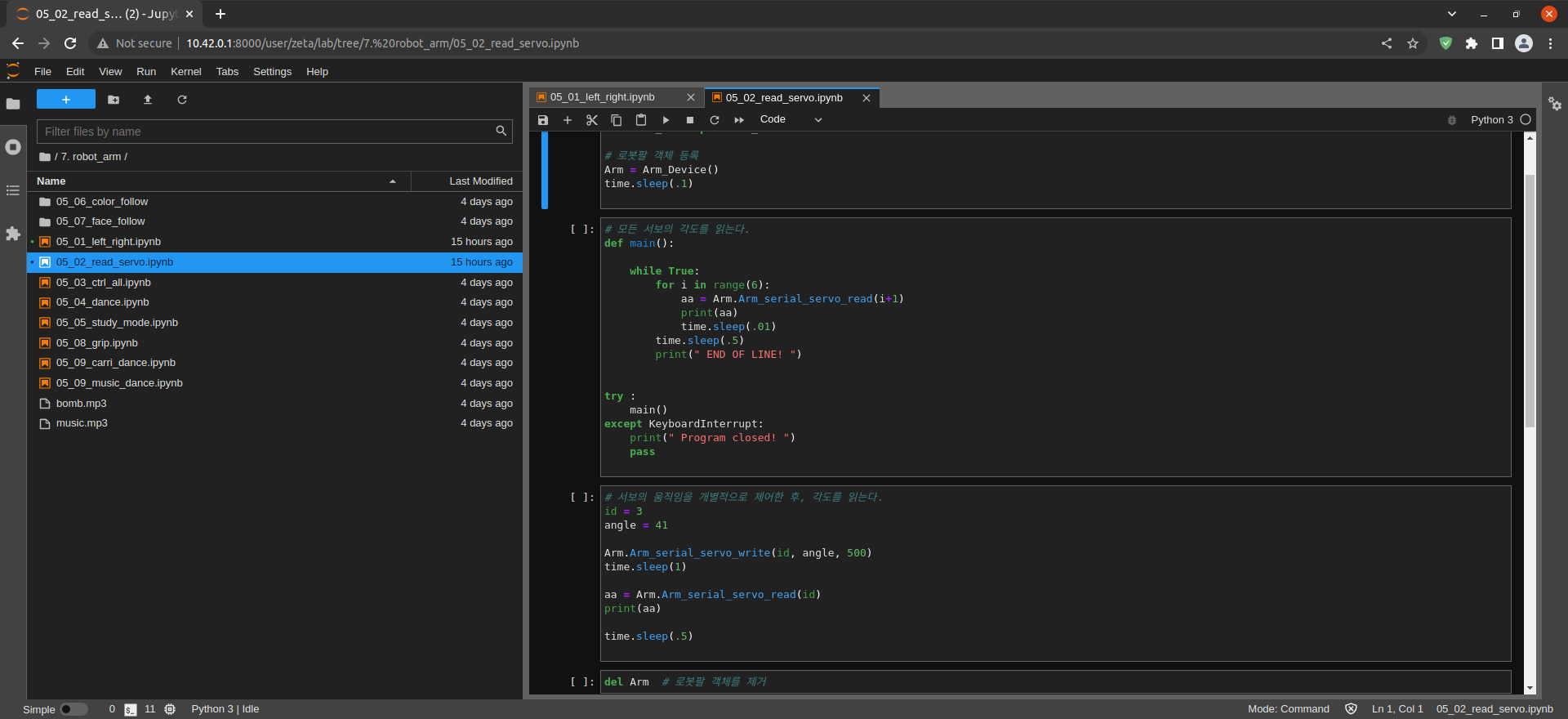

  • 05_02_read_servo.ipynb

  • Running the cell code
    Ctrl + Enter
#!/usr/bin/env python3
#coding=utf-8
import time
from Arm_Lib import Arm_Device

# Register robot arm as an object
Arm = Arm_Device()
time.sleep(.1)

  • Load Arm_Lib module and register the robot arm as an object

# Read the angles of all servos.
def main():

    while True:
        for i in range(6):
            aa = Arm.Arm_serial_servo_read(i+1)
            print(aa)
            time.sleep(.01)
        time.sleep(.5)
        print(" END OF LINE! ")


try :
    main()
except KeyboardInterrupt:
    print(" Program closed! ")
    pass

  • Arm_serial_servo_read (motor number)

  • Read all servo motor angles using while statement

# After individually controlling the movement of the servos, the angle is read.
id = 3
angle = 41

Arm.Arm_serial_servo_write(id, angle, 500)
time.sleep(1)

aa = Arm.Arm_serial_servo_read(id)
print(aa)

time.sleep(.5)

  • Arm_serial_servo_write (motor number, angle, time)

  • Read angle after controlling servo motor No. 3

del Arm  # Remove robot arm object

  • Remove object (Robot arm)
