Mission

For our Pose Estimation Mission, we will

First, create our custom poseNet program

Second, adjust the overlay settings of our result

Writing Custom poseNet Program

Similar to how we created a new python file in our team assignment, generate a new python file and name it pose_estimation_camera.py.

Create a new python file in the Jupyter Notebook Environment:

Press the blue plus button on the top left corner of the web.

Create a new python file by pressing the Python File button

Rename the untitiled python file to pose_estimation_camera.py
On the new python file, import the libraries necessary. For our Pose Estimation task, we need to import the Jetson inference library modules and jetson utility library modules
- argparse: This library contains modules that are responsbile for bringing and intitializing the flags or parameters set by the user when envoking the program.
- sys: this library allows us to manipulate/ utilize system functions within our python programs.
- jetson_inference: This library contains all the pre-built networks that can be used for inference task and a functions that would allow for custom models to be used for inference tasks.
  - poseNet: We are importing poseNet module for our poseEstimation task.
- jetson_utils: This library contains modules that are responsible for processing input and output sources along with output stream methods. We will be importing the following modules:
  - videoSource: used to process input source (whether it is a camera, an image, or a video).
  - videoOutput: used to process the output stream.
  - cudaFont: this module allows for overlay on the output stream.
```
import argparse
import sys

from jetson_inference import poseNet
from jetson_utils import videoSource, videoOutput, cudaFont
```

After all the libraries are imported, initialize the parser variable with argparse.ArgumentParser module.

For our mission, we must receive the network name, and Camera output channel name. Additionally we add 2 other optional parsers.

# parse the command line
# For our mission, We recieve the network name, and Camera name.
# Set up argument parser, so that command line parameters can be read within the program
parser = argparse.ArgumentParser(description="Run pose estimation DNN on a camera stream.",
                                 formatter_class=argparse.RawTextHelpFormatter,
                                 epilog=poseNet.Usage() + videoSource.Usage() + videoOutput.Usage())


# Major Functionality parameters (required from the user)
parser.add_argument("input_CAMERA", type=str, default="", nargs='?', help="use csi://0 for Raspberry pi Camera")
parser.add_argument("--network", type=str, default="", help="pre-trained model to load")

# Minor Functionality parameters (optional)
parser.add_argument("--overlay", type=str, default="links,keypoints", help="pose overlay flags (e.g. --overlay=links,keypoints)\nvalid combinations are:  'links', 'keypoints', 'boxes', 'none'")

parser.add_argument("--threshold", type=float, default=0.15, help="minimum detection threshold to use")

Initialize opt variable to hold all the user-set flags in a list form. If the user has set no flags, terminate the program:

# If no parameter is given from the user, shut the program down
try:
    opt = parser.parse_known_args()[0]
except:
    print("")
    parser.print_help()
    sys.exit(0)

Initialize the necessary variables. Since we wish to infer a network with a camera and show the results with our output stream we will need:
1. net variable for holding the nvidia pre-built networks. For this mission we are using googleNet network.
2. input variable for handling the input stream. Using the opt variable created in our previous step, we will bring in input_CAMERA to set our videoSource.
3. display variable for handling the output stream. Although we are accessing the code remotely on our remote computer, the zetabot is equipped with a touch screen display. The display is set on DISPLAY://0
4. font variable for handling the overlay text for our output stream.
```
# load the pose estimation model
net = poseNet(opt.network, sys.argv, opt.threshold)

# create video sources & outputs
input = videoSource(opt.input_CAMERA, argv=sys.argv)
output = videoOutput("DISPLAY://0", argv=sys.argv)

# Initialize the overlay font
font = cudaFont()
```
For this task we are utilizing our camera. On our previous trials, we had to to an inference on a single image. The program could recieve the one image infer it with the network and output a single result.

But with a camera, we need to repeatedly run the inference so that we may capture the incoming frames from the camera and output a constant stream of results.
- We may achieve this by running a while loop until an envoked output stream window is killed by the user.
```
# process frames until the user exits
while display.IsStreaming():
```
- Within the while loop:
  - Capture the current frame from the camera, run the inference, and determine the estimated pose of the object.
    # Capture each of the frames of camera img = camera.Capture() # perform pose estimation (with overlay) poses = net.Process(img, overlay=opt.overlay)
  - With our pose calculated, determine how many keypoints our inference model has estimated
    total_keypoints = 0 for pose in poses: total_keypoints += len(pose.Keypoints)
  - Overlay the total number of objects determined as well as total number of keypoints determined.
    #overlay the number of detected objects with total number of keypoints on the frame font.OverlayText(img, img.width, img.height, "detected {:d} objects, with {:d} keypoints".format(len(poses), total_keypoints), 5, 5, font.White, font.Gray40)
  - Render the result output and update the title bar of the output window.
    # render the image output.Render(img) # update the title bar output.SetStatus("{:s} | Network {:.0f} FPS".format(opt.network, net.GetNetworkFPS()))

Executing the Custom Program

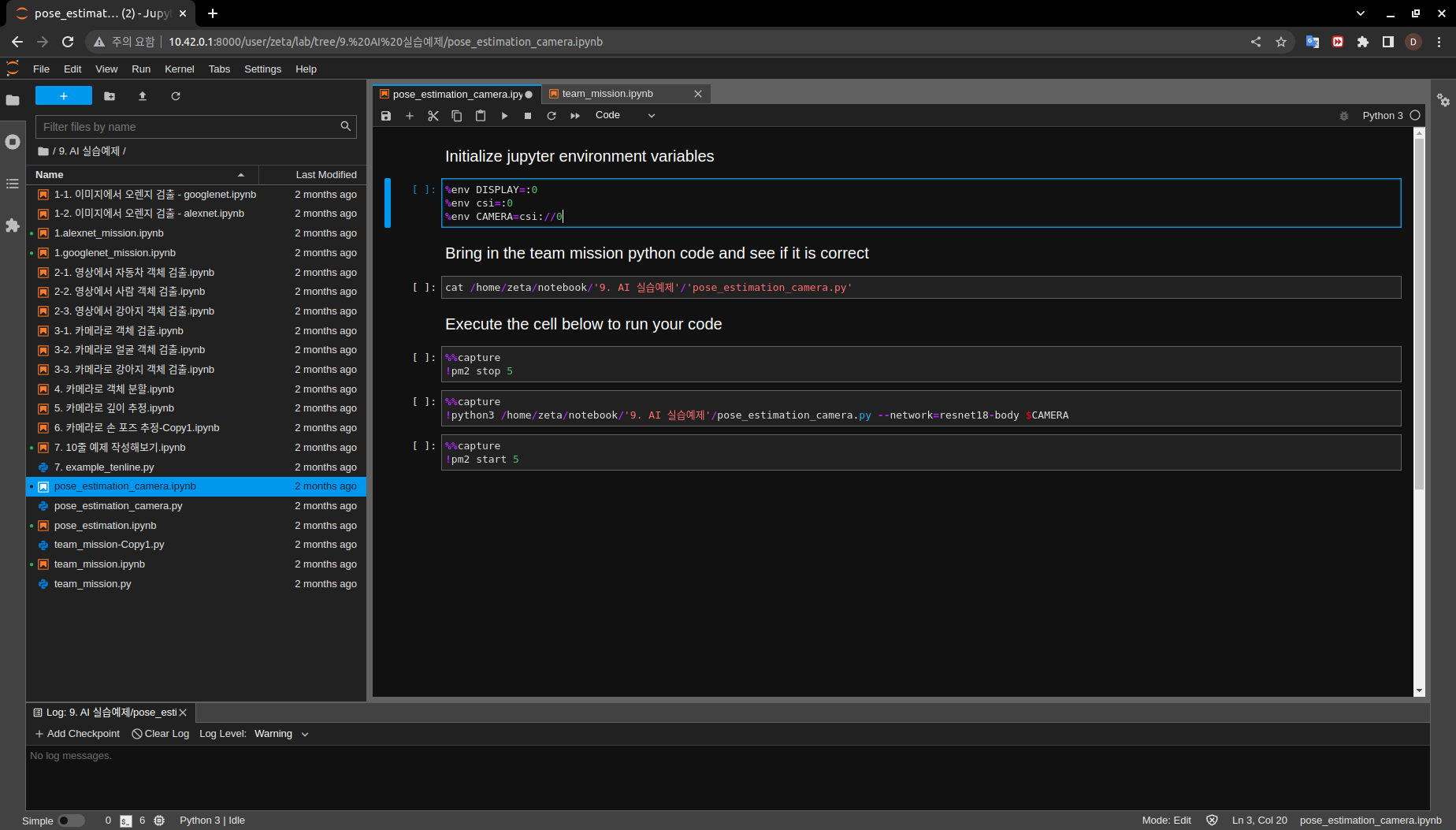

Open the pose_estimation_camera.ipynb notebook.

Run the cell code which initializes the input/ output stream of the environment as well as the CAMERA variable, which will be the flag that determines the input vairable for the program to be a camera stream.
```
%env DISPLAY=:0
%env csi=:0
%env CAMERA=csi://0
```

Check if your python notebook can read the python code you have written:

cat /home/zeta/notebook/'9. AI 실습예제'/'pose_estimation_camera.py'

One important thing about the zetabot is that the Raspberry Pi camera is constantly running.

In order to use the camera for our task we must disable it first by running the following command:
```
%%capture
!pm2 stop 5
```
This will allow the camera to be used for our program.
Execute the pose_estimation_camera python code.

Note that we are setting our major functions,
- --network: to set which networks to use in our pose estimation task.
- input_CAMERA: to set which input stream will be used for our task. It is being set to CAMERA environment variable which holds csi://0 as a string.
```
%%capture
!python3 /home/zeta/notebook/'9. AI 실습예제'/pose_estimation_camera.py --network=resnet18-body $CAMERA
```
Be sure to turn the camera back online by:
```
%%capture
!pm2 start 5
```

Let’s Change the Overlay!!!

With the minor functions explanation, we have discussed many parameters that controls the overlay settings. Try to tweak the execution cell in your jupyter notebook to change how the results are overlayed.

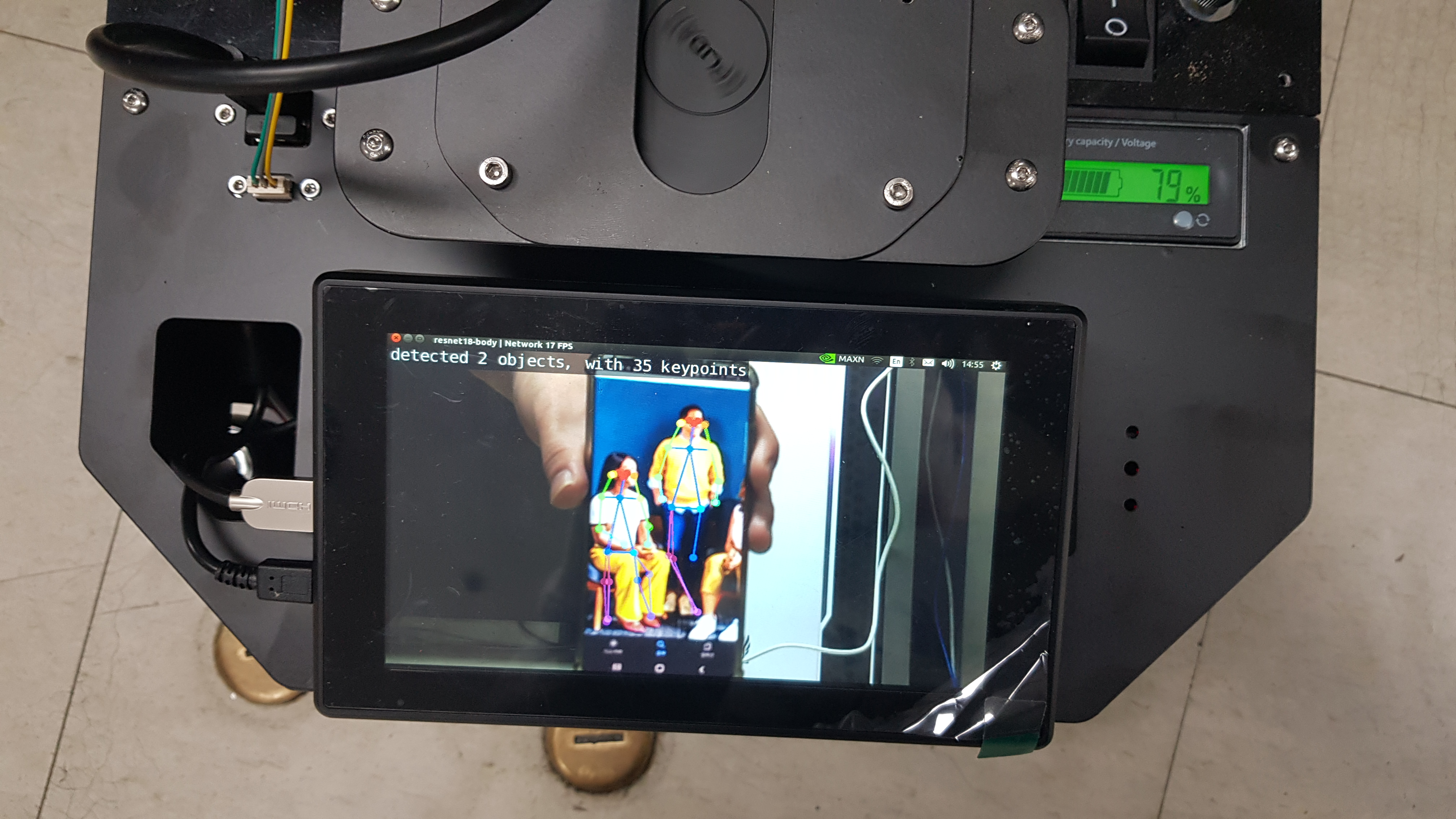

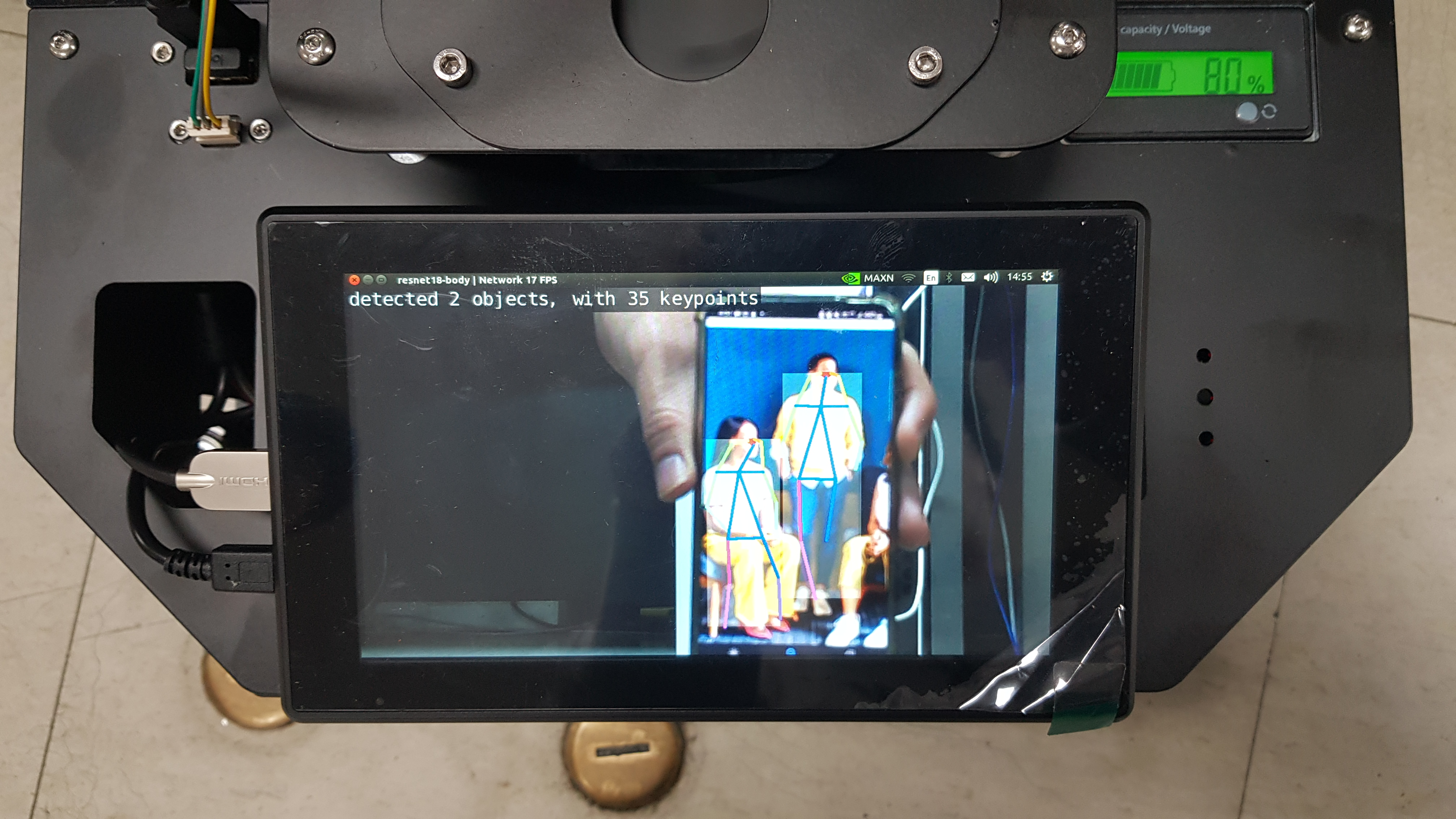

Examples:
